Kraft Paper Embossing Machine
Where creativity finds space ，Designed for your imagination ，Creativity begins here

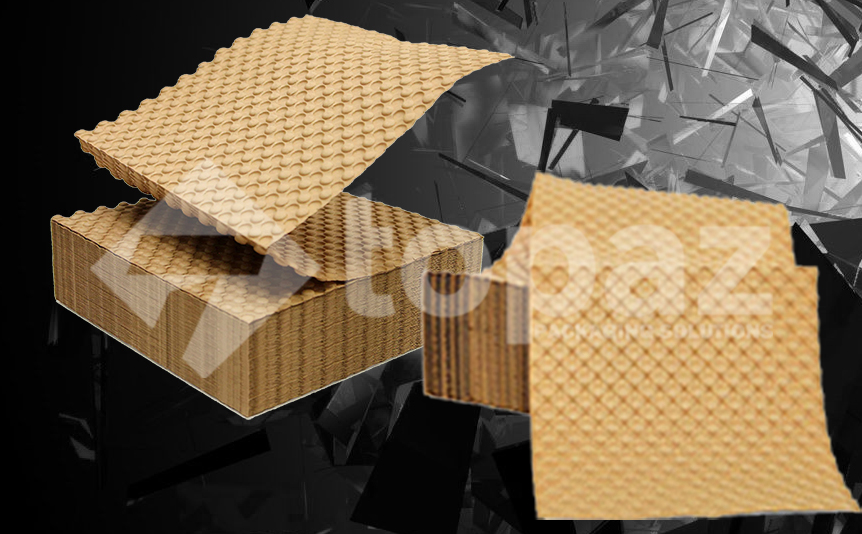

We manufacture kraft paper embossing machines since there is a great need for this biodegradable packaging material and embossed kraft paper is becoming more and more popular. Kraft paper becomes more rigid when embossed, which makes it ideal for use as a great void-fill packaging material. These days, a lot of small products like music CDs, porcelains, metal parts, and even flowers are packaged with embossed paper. When processed by our padded mailer equipment, it can also be used to create padded envelope mailers.
Overview
A roll of 800mm wide kraft paper may be turned into a roll of embossed paper using our machine, which can then be further cut into rolls that are narrower and have smaller diameters. This machine produces embossed kraft paper at a speed of 100 -150 meters per minute.
In addition to producing embossed paper, it can be laminated with a sheet of backing kraft paper to create a considerably tougher wrapping material that can take stronger blows. Starch and sodium hydroxide can be used to make the glue.
The 3D paper bubbles are heated and shaped by the machine using steam, which helps them maintain their shape over time.
Features & Benefits
1.Automated Processing: Integrates unwinding, tension control, web guiding, perforating, and stacking into a continuous, labor-saving workflow.
2.Embossing Types: Primarily produces dimple configurations, though some configurations support customized Pattern.
3.Material Specs: Typically handles paper weights from 40 to 150 gsm and roll widths up to roughly 780mm at speeds reaching up to 100-150 meters per minute.
4.Compatibility: Prepares paper stacks designed for major protective packaging and void-fill dispensing hardware .
5.Reduced Labor: Eliminates manual cutting, folding, and alignment steps.
6.Sustainability: Replaces plastic air pillows and bubble wrap with curbside-recyclable paper alternatives.
7.Storage Efficiency: Embossed Rolls stacks occupy less footprint and load much faster into dispensing units than other materials.
Specifications
Download the latest product brochure in next section for more detailed information, contact us if further information is needed
Model:HJ-HEP-2-IN1-MAILER-1500P
Unwinding width: ≤800mm
Unwinding diameter :≤60mm
Size: 6500x2100x1650mm
Production Speed: 100-150 m/min
Cutting Length：150-170 m/min
Rated Power:30.5kw
Power Supply:220v-380v 50hz
Weight:1.8t
Machine loading of paper & release of paper rolls
Touchscreen control
Highly intelligent
Easy to operate
Online assistance available
Frequently Asked Questions
How does Embossing machine works ?
>Roller Mechanism: Feeds roll-to-roll kraft paper through heavy-duty steel or rubber upper and lower concave-convex metal rollers.
>Pressure & Heat: Applies mechanical pressure (often via hydraulic or screw systems) and sometimes controlled heat to permanently reshape the paper fibers without using ink or harmful chemicals.
>Speed Regulation: Uses variable frequency motor drives to manage tension and keep continuous production speeds running anywhere from100 to 150 meters per minute.
Why is my paper tearing during embossing?
>The paper may be too thin, your sandwich setup might be too thick for the machine gap, or you are using an aggressive 3D folder with dry, brittle paper.
How do I prevent cracking on textured paper?
>Lightly misting the kraft paper with a tiny bit of water or using a lower-gsm paper with long wood fibers helps the material stretch under pressure.
