Paper Folding Machine
Strength.Efficiency.Versatility.Convertibility.
Customization.Sustainability
Paper rolls are converted into bundles of paper packs by the automatic paper folding mechanism, which then uses the paper void filling system to make paper cushions that are used for filling, wrapping, padding, and bracing. Because the fanfold paper packs are recyclable, biodegradable, compostable, and reusable, they provide an eco-friendly alternative to plastic bubble wrap. They function as an expanding paper wrap substitute for plastic bubble wrap and have a small environmental impact. An explanation of the automatic fanfold paper folding machine To protect fragile goods while in transit, cushioning is crucial. During shipment, packages are often handled carelessly, requiring precautions to prevent damage. By efficiently controlling shocks and vibrations, cushioning significantly reduces the possibility of damaged contents and subsequent returns. Because of its great efficiency, this industrial fanfold paper folding machine may help you save labor costs.
Overview

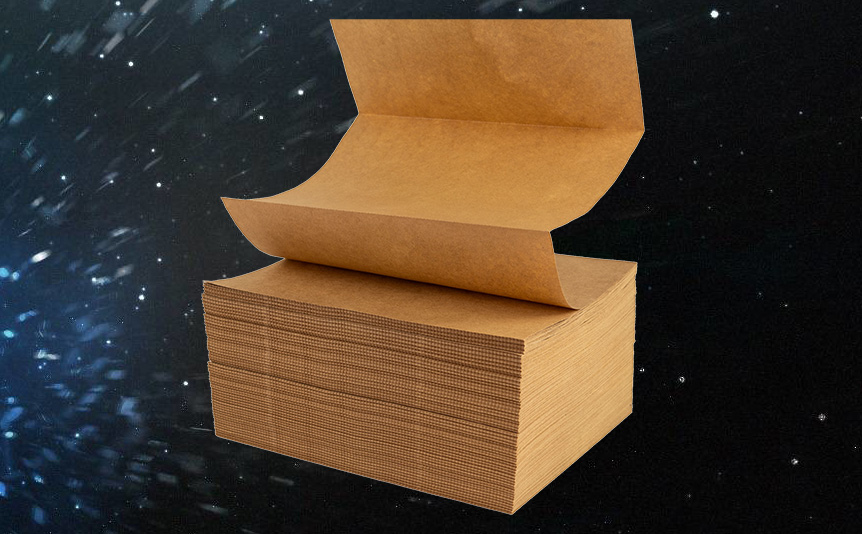

Heavy-duty rolls of kraft paper are automatically punched, perforated, sliced, and stacked into continuous Z-shaped folded stacks by a kraft paper folding machine, also known as a fanfold or Z-fold paper machine. Eco-friendly cushioning and void-fill methods for e-commerce and logistics packaging are provided by these folded stacks.Folding machines are essential tools in large printing facilities and contemporary packaging. They are responsible for the automation of the paper folding process, which results in higher productivity and accuracy. The type of materials utilized and the particulars of the task being done determine which folding machine model is best. The topaz paper folding machine greatly enhances both the final product’s quality and the production procedure.
Features & Benefits
1.Automated Processing: Integrates unwinding, tension control, web guiding, perforating, and stacking into a continuous, labor-saving workflow.
2.Fold Types: Primarily produces Z-fold (fanfold) configurations, though some configurations support inline C-folds for multi-layer reinforcement.
3.Material Specs: Typically handles paper weights from 40 to 150 gsm and roll widths up to roughly 780mm at speeds reaching up to 100-200 meters per minute.
4.Compatibility: Prepares paper stacks designed for major protective packaging and void-fill dispensing hardware .
5.Reduced Labor: Eliminates manual cutting, folding, and alignment steps.
6.Sustainability: Replaces plastic air pillows and bubble wrap with curbside-recyclable paper alternatives.
7.Storage Efficiency: Fanfold stacks occupy less footprint and load much faster into dispensing units than loose rolls.
Specifications
Download the latest product brochure in next section for more detailed information, contact us if further information is needed
Model number:Topaz-780-Paper Folding Machine
Web working width:780mm
Maximum unwinding diameter:1000mm
Maximum roll weight:1000Kgs
Running speed:5-300m/min
Fold size:7.25-15 inches
Machine weight:5000kgs
Machine size:6000mm*1650mm*1700mm
Power supply:380V 3Phase 5 wires
Main motor:22KW
Paper loading system:Automatic hydraulic loading
Unwinding shaft:3 inch inflatable air shaft
Switch:Siemens
Touch screen:Mikom
PLC:Mikom
Electrical:Mikom
Tension control:Wenew
Web guide device:Dongdeng
Touch screen fault alarm device:1 set
Cross rolling line device:1 set(optional)
Bearing:NSK(import)
Conveyor belt:Nita(import)
Lubrication method:Automatic oiling
Slitting device:1 set
Paper output mode:Electric machinery
Waste discharge mode:Air blower
Main driving part:High precision gear
Wallboard:45mm thick Overall
Whole machine:Baking varnish
Downloads
Frequently Asked Questions
What is a folding machine?
An advanced machine that folds paper automatically is called a folding machine. The primary function of this bookbinding machine is to precisely fold sheets of paper by bending them at a 180-degree angle. This procedure, sometimes referred to as folding or breaking, is essential to the creation of many printed items.
What are folding machine types ?
Every folding machine folds paper one sheet at a time, while some feature a manual feed that allows you to manually insert up to five pages, which the machine will fold. The majority are manually operated friction feed devices, so named because the paper is passed through the device while being pinched between two rollers.Additionally, there are the four roller pharmaceutical machines mentioned before. Air or vacuum feed is the alternative. They work well for high volume and glossy paper.
